Diamond Laser 7000 Bandsaw - Tile
$2,250.93
/
Shipping calculated at checkout.
Pickup available at 1570 Global Ct
Usually ready in 24 hours

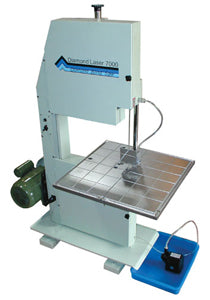

Diamond Laser 7000 Bandsaw - Tile
Designed for the studio setting, the Diamond Laser™ 7000 Heavy Duty Wet Band Saw makes precision cuts through marble, granite, tile and glass with ease. The DL7000 is an excellent time saver for artists working in multi-mediums. The easy-to-use features get you cutting quickly, and the large two wheel design creates a 13" throat depth to accommodate glass slab up to 2' wide and 1- 1/2" thick. There are no other saws like the Diamond Laser 7000 on the market today!
Key Features:
- Cuts tile, stone, marble, porcelain and glass tile up to 1-1/2” thick
- Heavy-duty industrial design provides durability for production use
- 3/4 HP motor
- Large 13” throat depth allows for deep diagonal cuts
- Performs precision radius cuts for intricate design work
- Re-circulating water pump keeps saw running clean
- Large 18” x 18” cutting table
- INCLUDES one diamond - coated blade.
- 8.0mm tile blade makes intricate cuts in marble, granite, ceramic, travertine and porcelain
- 94” blade length - continuous band
- Full One Year manufacturer warranty, instruction manual and FREE tech support
- *Ships via FREIGHT = please allow 7-10 days for delivery
| Specifications | |
| Motor | 3/4 HP single speed |
| Voltage | 110V |
| Amperage | 7.9 Amps |
| Motor Shaft Speed | 1,400 rpm |
| Length | 38" (with table) |
| Height | 48" |
| Weight | 162 lbs. (73.5 kg) |
| Table Size | 18" x 18" |
| Throat Depth (depth of cut into field) | 13" |
| Throat Height | 8.5" maximum |
| Blade Length (continuous band) | 94.25" |
| Blade Thickness (kerf) | 0.025" (0.64 mm) |
| Blade Depth - Tile | 0.35" (8.0 mm) |
| Blade Depth - Glass | 0.30" (7.5 mm) |
| Minimum Radius Cut | 1/2" - 3/4" |
| Max. Cutting Thickness - marble/granite | 1-1/2" |
| Max. Cutting Thickness - concrete/limestone/glass | 2" |
| Cutting Speed - 3/4" Marble | 8"/minute |
| Cutting Speed - 3/4" Slab Glass | 12"/minute |
| Blade Life Estimate - 3/4" Marble | 40 - 50 cutting hrs. |
| Blade Life Estimate - 1/4" Glass | 40 - 60 cutting hrs. |
| Blade Life Estimate - 3/8" Porcelain | 20 cutting hrs. |
| Manufacturer | Diamond Tech International |
| DTI Item No. | DL7000 |
DIA700
